1961-64 E-Type 5 speed kit 3.8L

SKU: 16122842 Category:

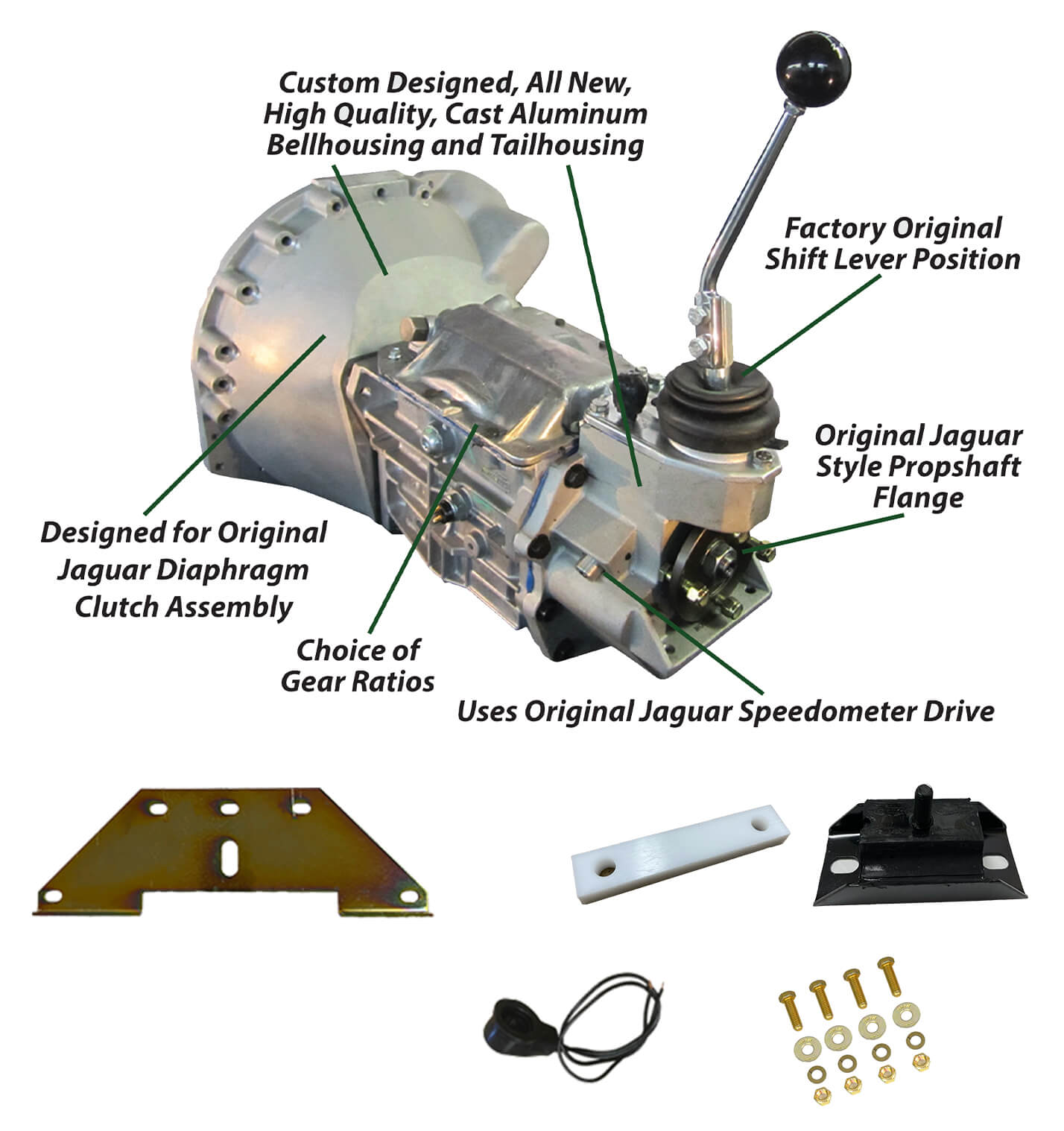

Kit Contents:
• Patented: 100% new custom built gearbox based on the Tremec Z Spec T5
• New cast aluminum bell housing
• Chrome shift lever
• Jaguar style shift knob
• Gearbox mount
• Gearbox support bracket
• Reverse lamp harness
• Installation hardware
• Jaguar specification output flange

$5,495.00

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Description

Features
• 2 year unlimited mileage warranty
• No modifications to the car body
• Shift lever is in the original Jaguar location.
• Uses original Jaguar right angle speedometer drive
• Uses the standard 4.2 Jaguar 9.5″ clutch kit. *
• Uses the standard 4 speed propshaft. **
• The 1st – 4th gear ratios in our standard ratio 5 speed package are practically the same as 1st – 4th in the Jaguar E Type all synchro 4 speed gearbox. This means they are ideally suited to the power curve of the Jaguar inline 6 cylinder engine unlike many other gearboxes, such as the Cosworth box, which were originally designed for 4 cylinder engines that needed high revs to make power.
• The only patented 5 speed gearbox available for the E Type or MKII

* Not compatible with the three-finger clutch style. Will require the TDM 3.8 Flywheel for proper bolt pattern.
** Note that MKII Sedan and Jaguar E Type 2+2 require a new propshaft

Weight: 85.0000 lbs

Dimensions: W14.0000" x H19.0000" x L26.0000"
