Mercedes Benz Pagoda SL 230, 250 SL and 280SL 5-speed conversion kit W113 body style

SKU: PFMB-20001 Category: Transmission Kits

Mercedes Benz Pagoda SL 5 speed conversion kit

Kits are built to order please allow 2-4 weeks to ship. Please call us at 931-646-4836 or hit the request for quote button below for a quick emailed quote.

Request A Quote

In Stock

If you don't know what you need, call our technical sales staff at 931-646-4836

Overview
Shipping

Description

Mercedes Benz Pagoda SL 5-speed conversion system.

Fully synchronized
400 lb/ft of torque capacity
Choose one of two 5th gear ratios
2 year unlimited mileage warranty
CNC milled bellhousing adapter

Mercedes 280SL 5-Speed Conversion Kit with 0.73 or .63 overdrive

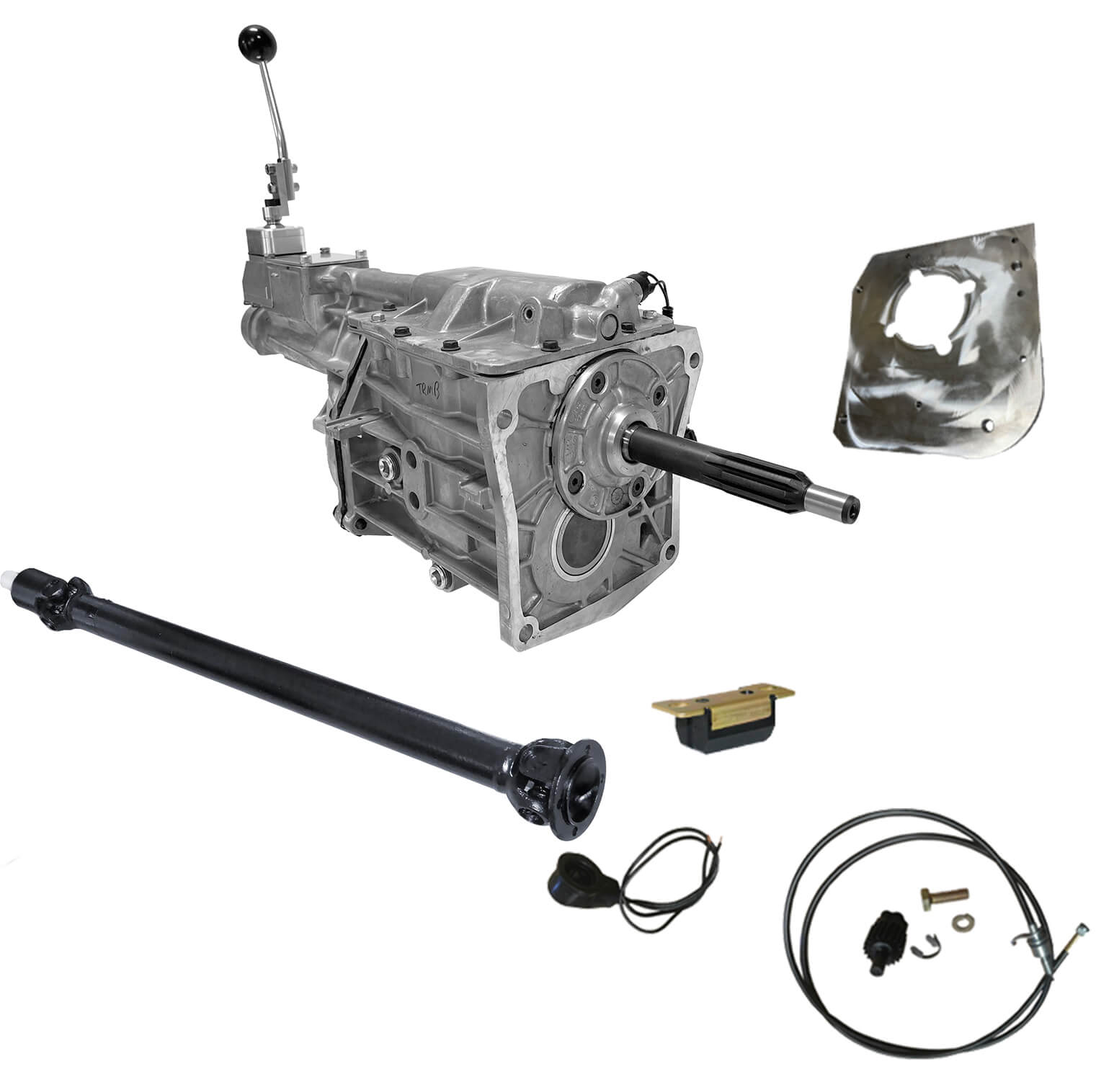

Kit consists of:
New custom 5 speed gearbox based on new Tremec T5 Transmission
Adapter Plate to engage original Mercedes 4 speed bellhousing
Pilot Bearing
New billet shifter assembly to replicate Mercedes 4 speed shift lever location
Transmission Mount
Speedometer Cable and Gear with reverse light harness
New DOM steel balanced propshaft
All Necessary Installation Hardware

Instructions

MBPA-00001 Mercedes 5-speed REV.A-MG 090924

Weight: 145.0000 lbs

Dimensions: W15.0000" x H28.0000" x L36.0000"

If you don't know what you need, call our technical sales staff at 931-646-4836
